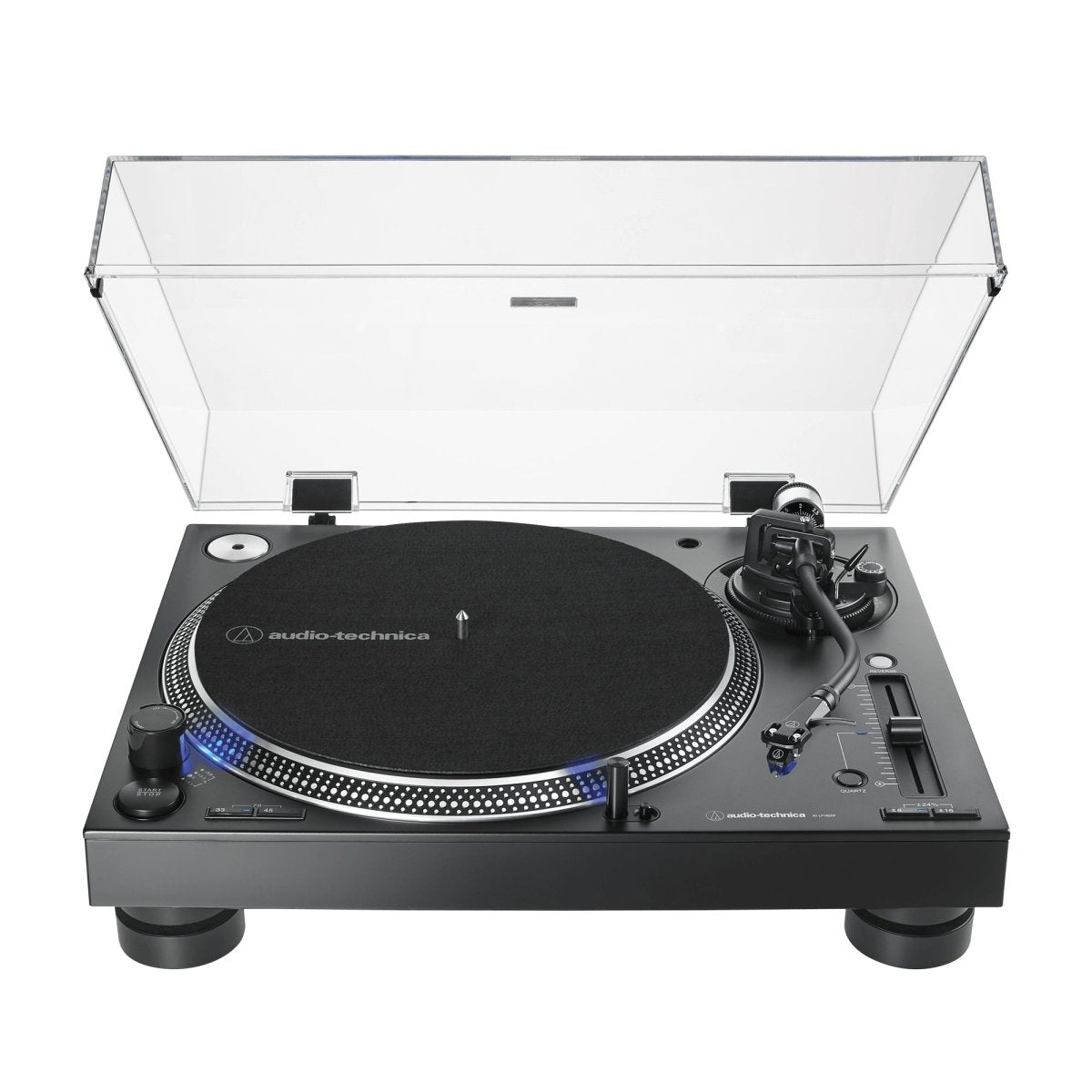

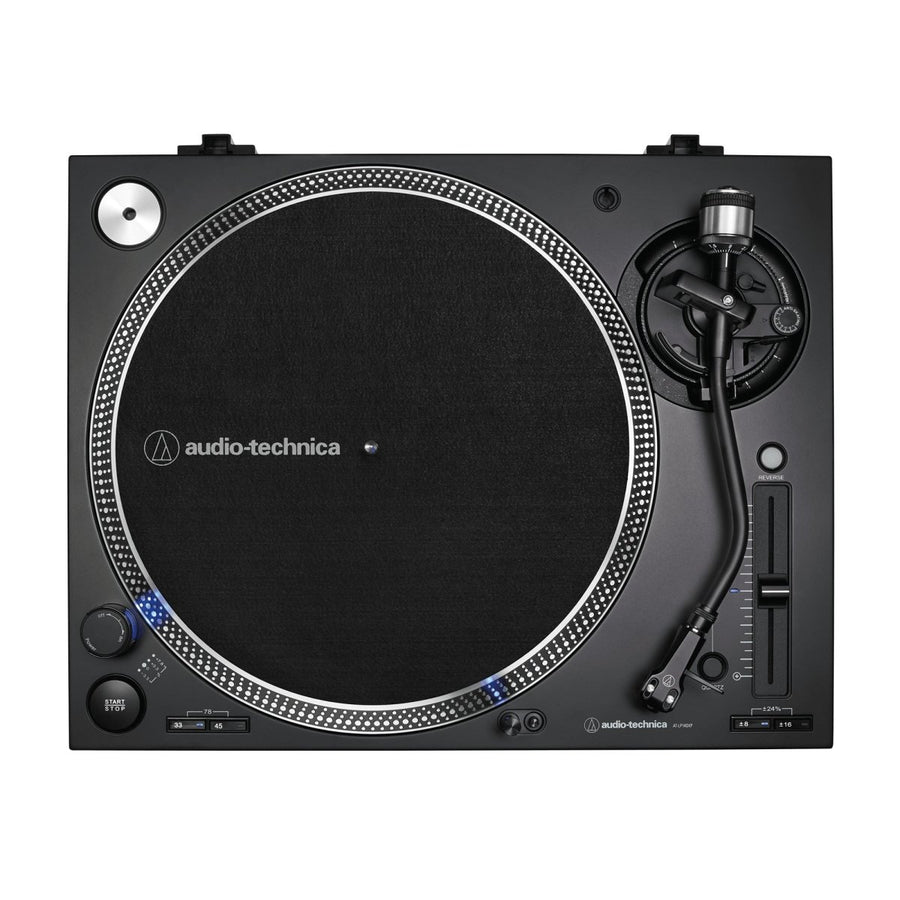

The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and anti-resonant, mass-damped, die-cast aluminum platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal ½"-mount headshell.
Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and supplies a strong 5.5 mV output.
Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a popup stylus target light; and a removable hinged dust cover.
Technical Specs
Turntable |
Type |
3-speed, fully manual operation |
Motor |
High-torque DC motor |
Drive Method |
Direct drive |
Speeds |
33-1/3 RPM, 45 RPM, 78 RPM |
Turntable Platter |
Die-cast aluminum |
Starting Torque |
>2.2 kgf.cm |
Wow and Flutter |
<0.2% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio |
>50 dB |
Output Level |
5.5 mV nominal at 1 kHz, 5 cm/sec |
Power Supply Requirements |
115/230V AC, 60/50 Hz |
Dimensions |
452.0 mm (17.80") W x 352.0 mm (13.86") D x 158.6 mm (6.24") H |
Weight |
10.0 kg (22 lbs.), without dust cover |
Accessories Included |
AT-XP3 phono cartridge; AT-HS6 headshell; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter |
Pitch Variation |
+/-8% or +/-16% or +/-24% |
Notes |
Tonearm type: Balanced S-shaped tonearm with detachable headshell Effective arm length: 230.5 mm Overhang: 16 mm Tracking error angle: Less than 3 degrees Applicable cartridge weight: 3.5-8.5 g Anti-skating range: 0-4 g Replacement Stylus: ATN-XP3 |
